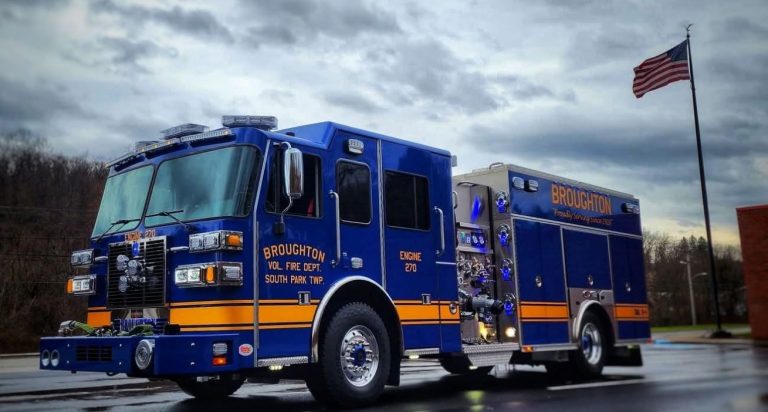

The vehicle features a 209-inch wheelbase, a travel height of 9–10 feet, and a travel length of 32 feet and 10 inches. It is built on the Sutphen Monarch Heavy-Duty Custom Chassis with a 73-inch extended cab and 10-inch raised roof. The cab accommodates six people with four doors, supported by 10-inch double frame rails (50K PSI). The front axle and suspension are rated at 20,000 lbs, and the rear axle and suspension at 27,000 lbs. It is powered by a 500 HP Cummins X12 engine paired with a Leece Neville 420 AMP alternator and an Allison Gen 5 EVS4000 transmission.

The Waterous pump has a CSU-2000 GPM single-stage design, featuring various discharges: 2 ½-inch and 4-inch options located at the left, right, rear, and front, along with a 3-inch discharge for the deck gun. It includes two crosslays with 2-inch valves and 1 ½-inch swivel piping, supported by a 500-gallon water tank.

The body is made of 3/16-inch extruded aluminum by Sutphen, equipped with Amdor roll-up compartment doors and over 353 cubic feet of compartment space. It includes a Duo-Safety ladder package with a 900A 24-foot two-section ladder, 775A 14-foot roof ladder, and a 10-foot folding ladder. The model design is PS-09 with Res 50/47 ladder chute and hatch.
